CorgiDude บอร์ด Image Classification โดยใช้ MobileNetV1

PreviousImage ClassificationNextCorgiDude บอร์ด Image Classification โดยใช้ Transfer Learning MobileNetV1

Last updated 4 years ago

Was this helpful?

ดีครับ สำหรับบอร์ด CorgiDude ที่อยากจะทำ Image Clssification นั้นนะครับ บทความนี้จะมาสอนใช้โมเดลที่มีอยู่แล้วนะครับ แต่ถ้าอยากจะเทรนเองเดียวมีบทความต่อให้นะครับ เรามาเริ่มกันเลยดีกว่าครับ ก่อนอื่นก็ต้องมี โมเดลก่อนครับ ลิ้งโหลดด้านล่างครับ

(]

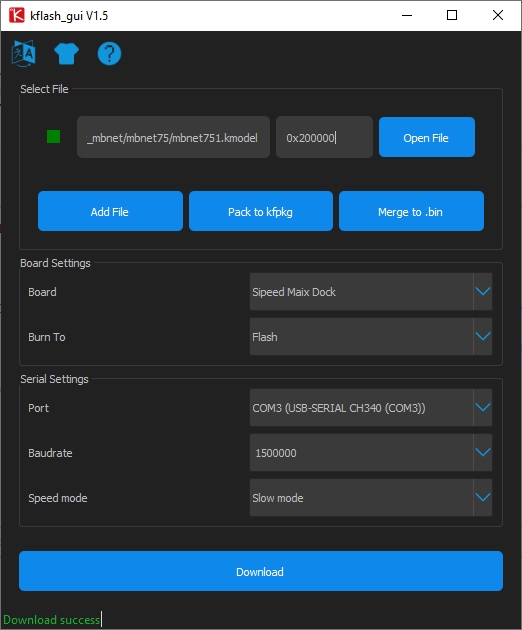

ต่อไปก็ทำการ Flash model ที่ได้โหลดมาครับ หรื่อใคร Flash model ไม่เป็น ไปทำตามบทความตามลิ้งต่อไปนี้ครับ

(]

Flash ไปที่ตำแหน่ง 0x200000 เลยครับ

หลังจาก Flash เสร็จแล้ว ต่อไปนำไฟล์ labels.txt ไปใว้ใน SD Card ได้เลยครับ ไฟล์ labels.txt หาได้จาก

นำไฟล์ labels.txt ไปใส่ SD Card ได้เลยครับ เรามารัน script ต่อไปนี้ได้เลยครับ

import sensor, image, lcd, time
import KPU as kpu
sensor.reset()
sensor.set_pixformat(sensor.RGB565)
sensor.set_framesize(sensor.QVGA)
sensor.set_windowing((224, 224))
sensor.set_vflip(1)
sensor.run(1)
lcd.init(type=2, freq=20000000, color=lcd.BLACK)
lcd.rotation(2)
f=open('/sd/labels.txt','r')
labels=f.readlines()
f.close()

task = kpu.load(0x200000)
clock = time.clock()
while(True):
    img = sensor.snapshot()
    clock.tick()
    fmap = kpu.forward(task, img)
    fps=clock.fps()
    plist=fmap[:]
    pmax=max(plist)
    max_index=plist.index(pmax)
    a = lcd.display(img)
    lcd.draw_string(0, 0, "%.2f:%s "%(pmax, labels[max_index].strip()))
    print(fps)
a = kpu.deinit(task)

สำหรับใครที่ Copy Script แล้วมีปัญหา โหลดได้ครับ

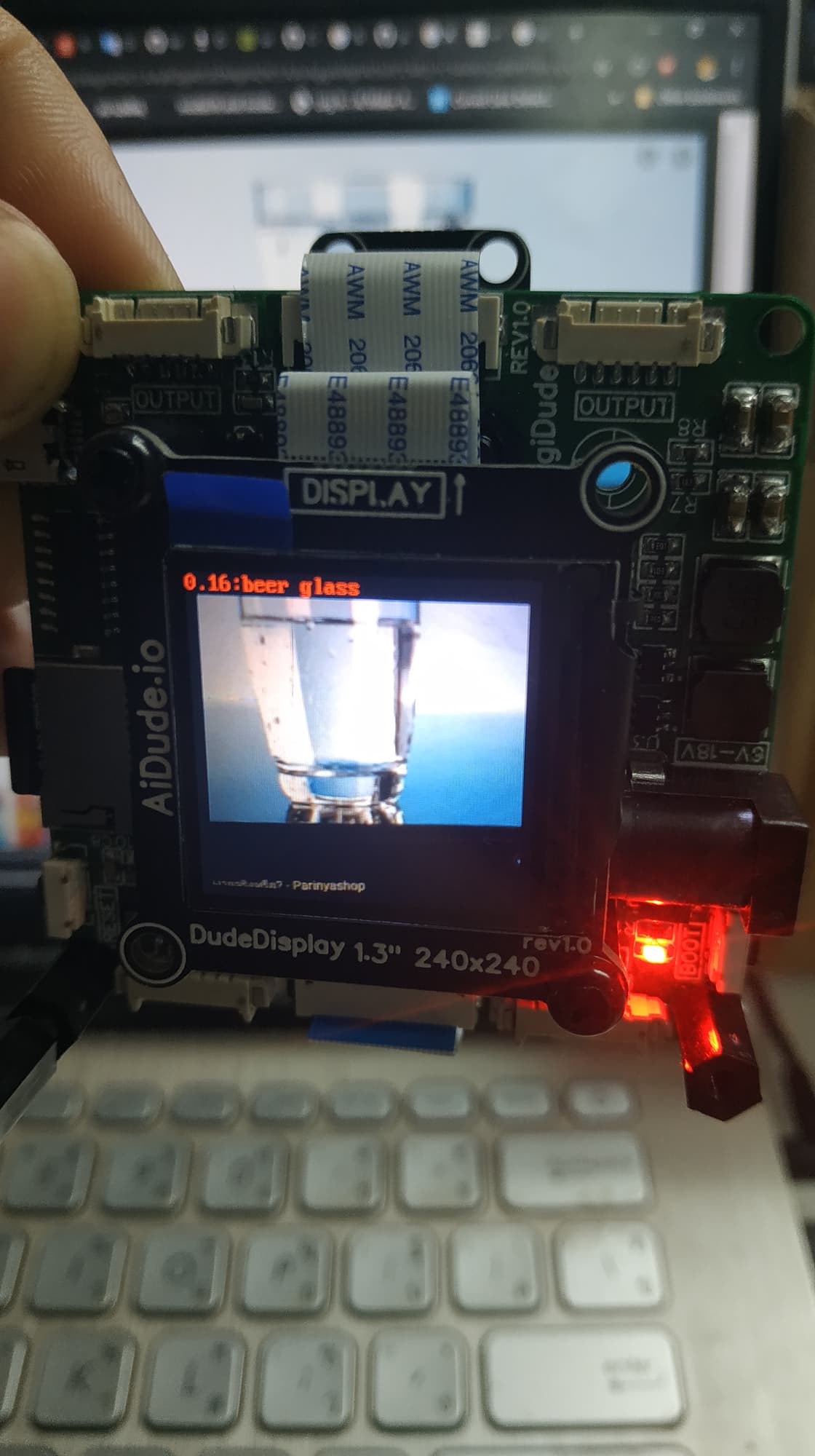

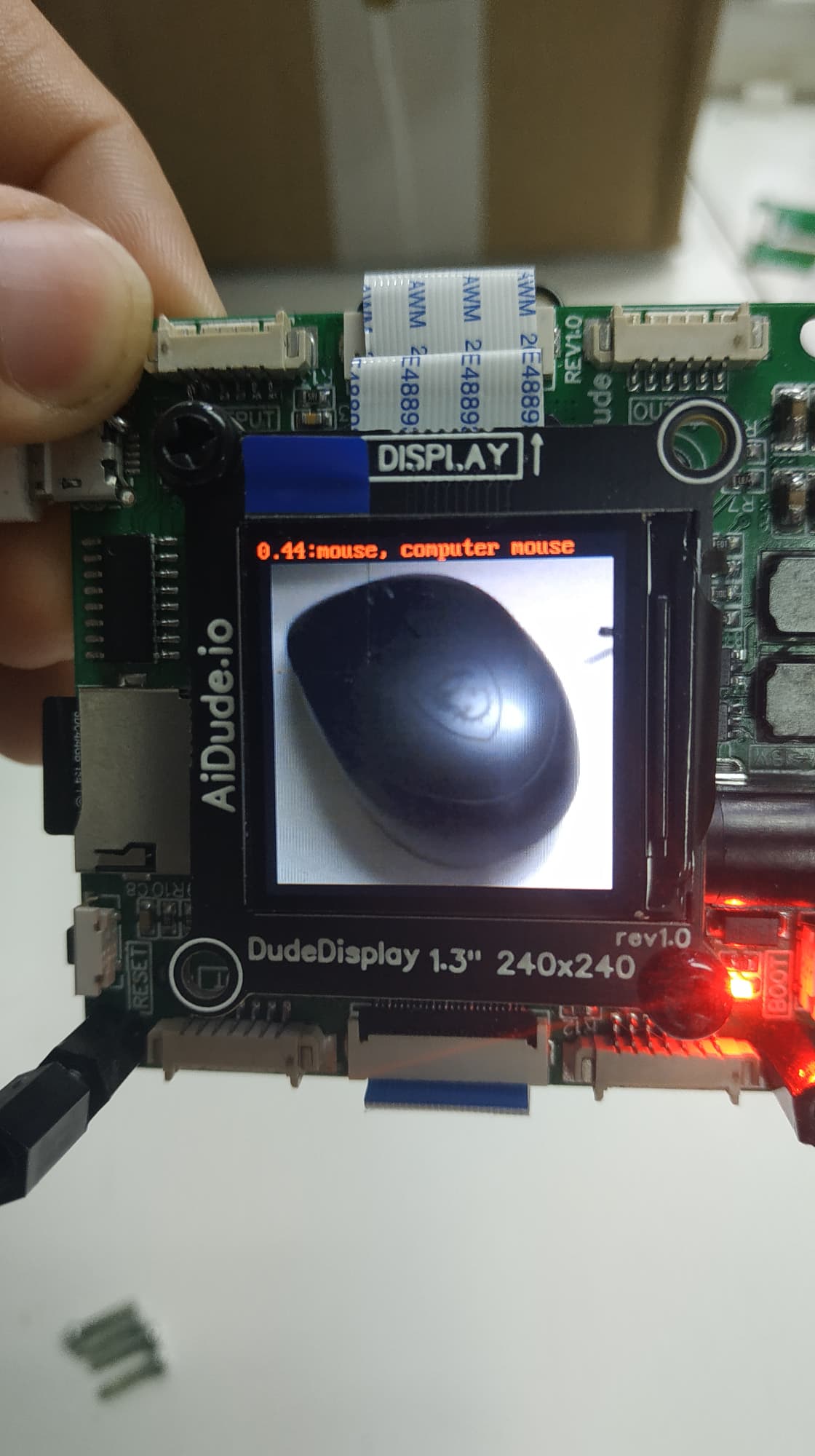

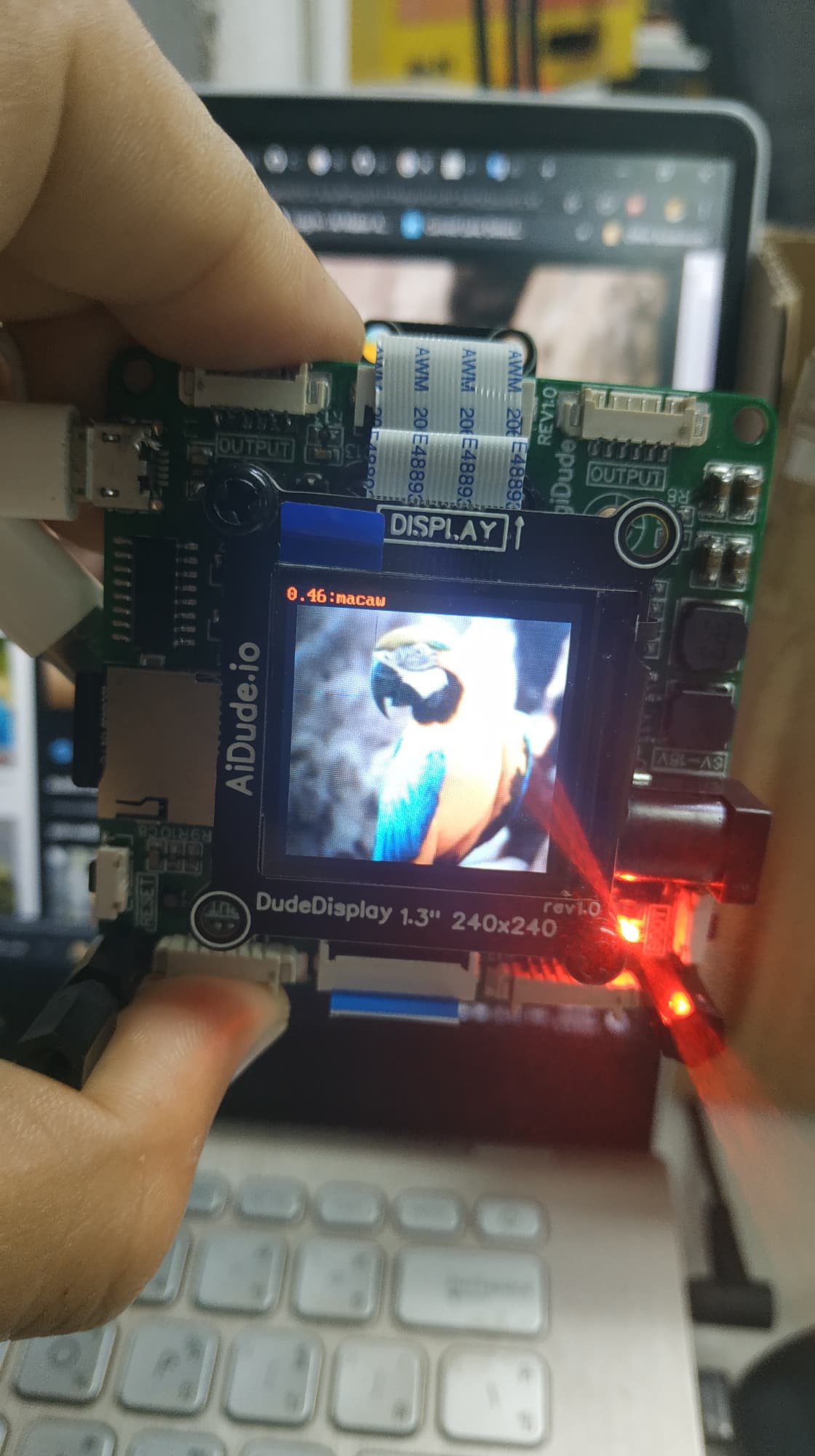

ผลจากการรันดูครับ

(]

(]

https://github.com/AiDude-io/CorgiDude/blob/master/models/MobilenetV1_1000/labels.txt)[https://github.com/AiDude-io/CorgiDude/blob/master/models/MobilenetV1_1000/labels.txt
https://github.com/AiDude-io/CorgiDude/blob/master/models/MobilenetV1_1000/MobilenetV1_1000.py)[https://github.com/AiDude-io/CorgiDude/blob/master/models/MobilenetV1_1000/MobilenetV1_1000.py
https://github.com/AiDude-io/CorgiDude/blob/master/models/MobilenetV1_1000/mbnet751.kmodel)[https://github.com/AiDude-io/CorgiDude/blob/master/models/MobilenetV1_1000/mbnet751.kmodel
